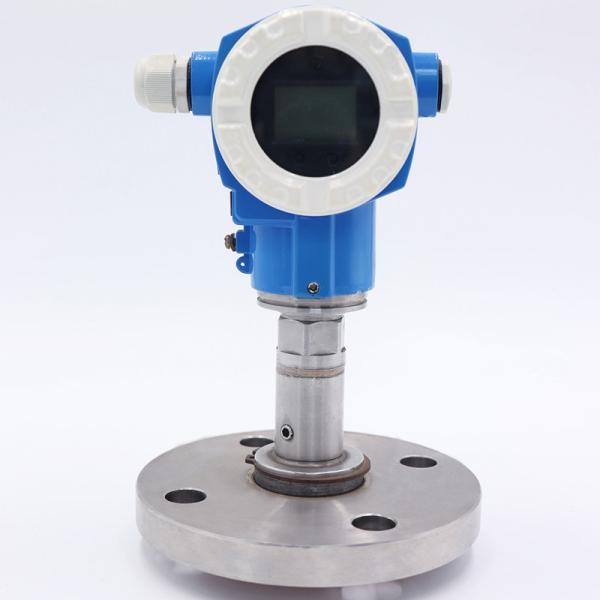

Smart IP66 IP67 Intelligent Pressure Transmitter With LCD Display

Place of Origin : Anhui, China

Brand Name : WNK

Model Number : WNK52

Packaging Details : Each product in one inner carton parcking with protection

Supply Ability : 2000 Set/Sets per Month 4-20mA Pressure Transmitter

Price : $150.00 - $350.00/Sets

MOQ : 1pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Delivery Time : 5-8 work days

Warranty : 1 YEAR

Customized support : OEM, ODM

Product name : IP66 /67 4-20mA Smart Pressure Transmitter With LCD Display

Pressure range : up to 700Bar

Protection class : IP66 /67

Output : 4~20mA, Hart, PROFIBUS-PA

Housing Material : Aluminum14

Power Supply : 10.5-55V DC, 10.5-30V DC

Monel, Tantalum Power Supply : OEM, ODM, customization available

Display : Liquid Crystal Display (LCD)

Ex-proof : ExiaII CT4/CT6, ExidIICT6

Stability : ±0.25% of URL for 1 year

Port : Shanghai

Contact Now

WNK52 differential 4-20ma pressure transmitter

IP66 /67 4-20mA Smart Pressure Transmitter With LCD Display

WNK52 Smart Diaphragm Pressure Transmitter (Gauge & absolute pressure)

WNK5 series pressure transmitter is the high performance pressure transmitters provided by Anhui WNK Electronic Engineering Co., Ltd. It transforms the physical signal of pressure, differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.
Our WNK5 series has the best precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.

Product Features
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration

Product Application

High process temperatures up to 280℃ with diaphragm seals.

It can be used below particular occasiaon
1. Need to isolate the high temperature medium with transmitter
2. The measuring medium is corrosive to the transmitter
3. The measuring medium solidification or crystallization due to environmental or temperature changes
4. Suspended liquid or high viscosity medium

Product Show

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
